Part #: N23D-6084-26

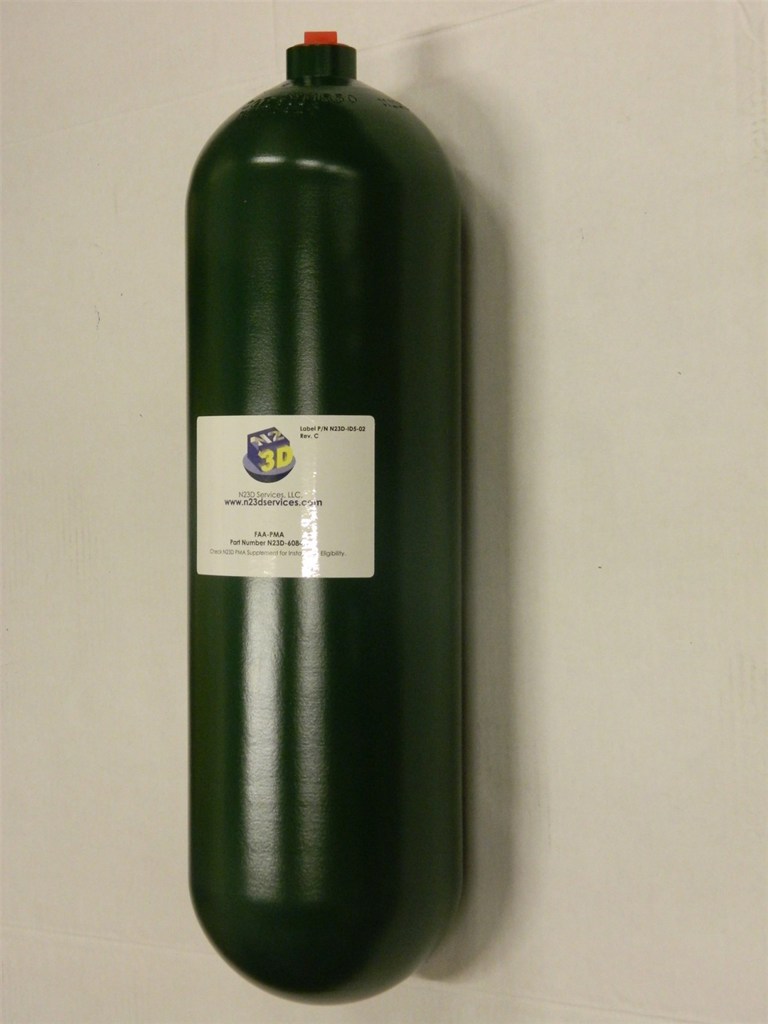

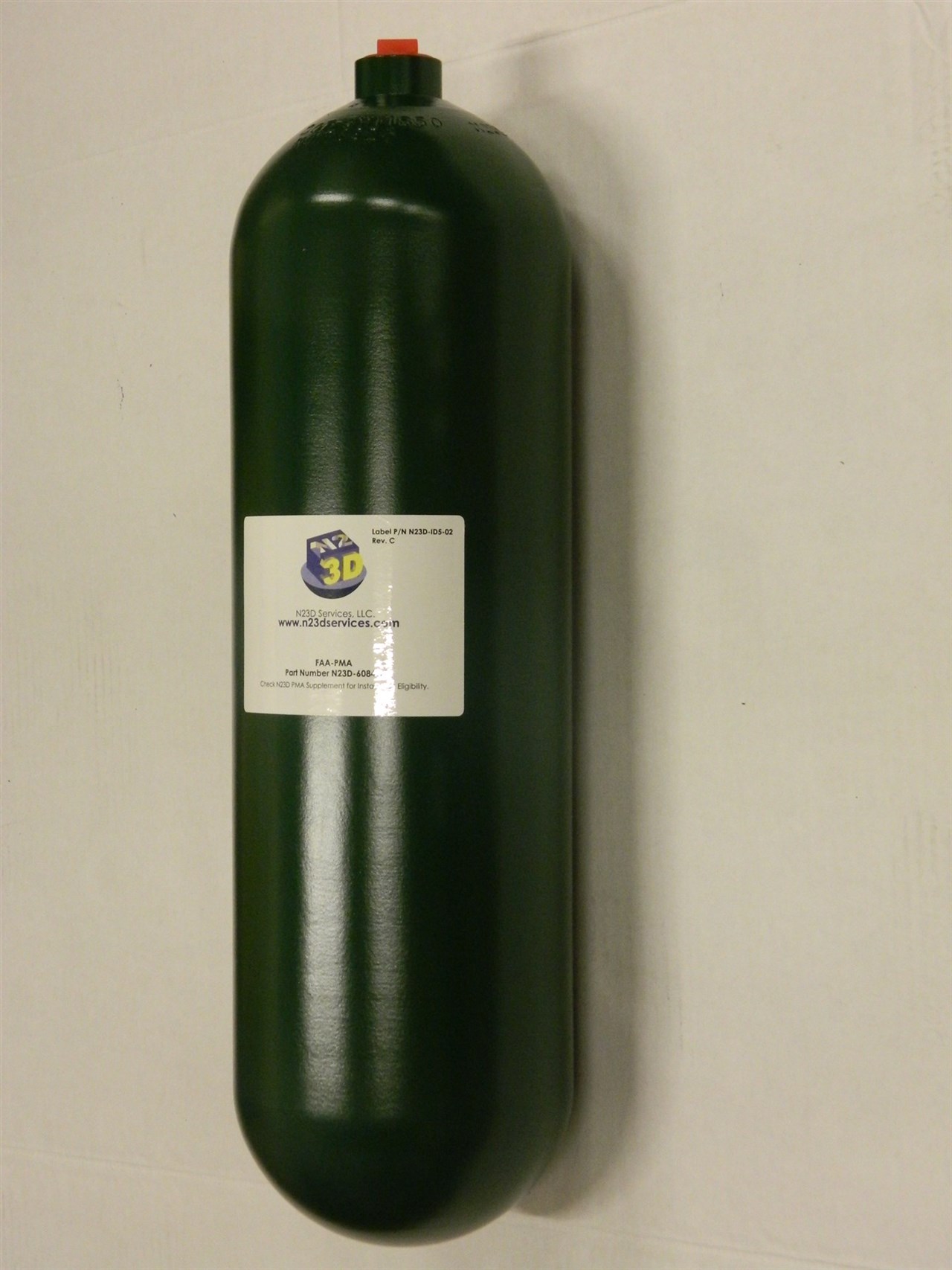

The N23D-6084-26 cylinder is an approved PMA replacement cylinder for Avox/Zodiac cylinder P/N 6084-26, 10003365, 6350A22XA, and 6350A22-X-A. The N23D-6084 Series PMA cylinder is manufactured to DOT 3HT specification, the same as the 6084-26, 10003365, 6350A22XA, and 6350A22-X-A cylinders from Avox/Zodiac. The cylinder is made from a steel billet, stretch formed into a cylinder with the end spun formed. The N23D-6084-26 PMA cylinder is eligible for installation into the Oxygen Systems on Boeing aircraft.



Cylinders available in 2 colors: Dark Green #24062 or Light Green # 14187 per FED-STD-595

Contact Us

Image with captcha text



   Part No.



N23D-6084-26



  Replaces Part No.



Avox/Zodiac:
6084-26
10003365
6350A22XA
6350A22-X-A



   Applies to



Boeing 707-100 Series/707-100B Series
707-200 Series/707-300 Series
707-300B Series/707-300C Series
707-400 Series
727 Series/727C Series
727-100 Series/727-100C Series
727-200 Series/727-200F Series
737-100 Series/737-200 Series
737-200C Series/737-300 Series
737-400 Series/737-500 Series
737-700 Series/737-800 Series
737-600 Series/737-700C Series
737-900 Series/737-900ER Series
747-100 Series/747-100B Series
747-100B SUD Series
747-200B Series/747-200C Series
747-200F Series/747-300 Series
747SP Series/747SR Series

All images used are for illustrative purposes only. The specifications of cylinders is correct at the date published but may be subject to change as necessary and without notice. Images are indicative of the quality and style of the specification and may not represent wholly the actual product.
