Part #: N23D-6084-34

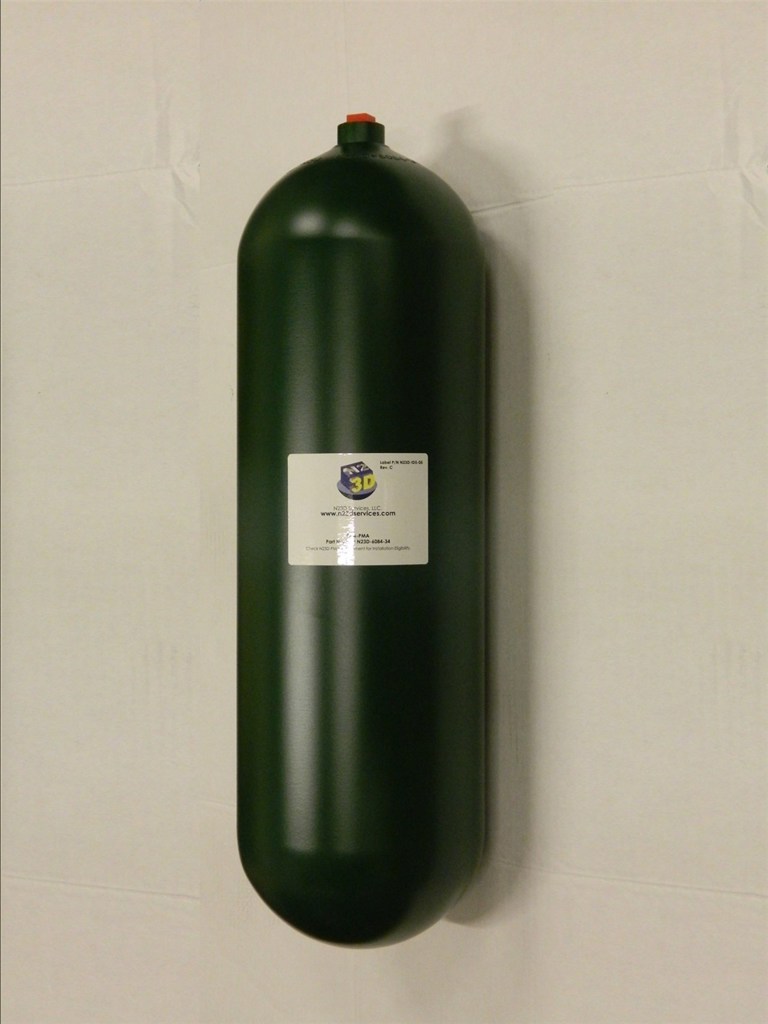

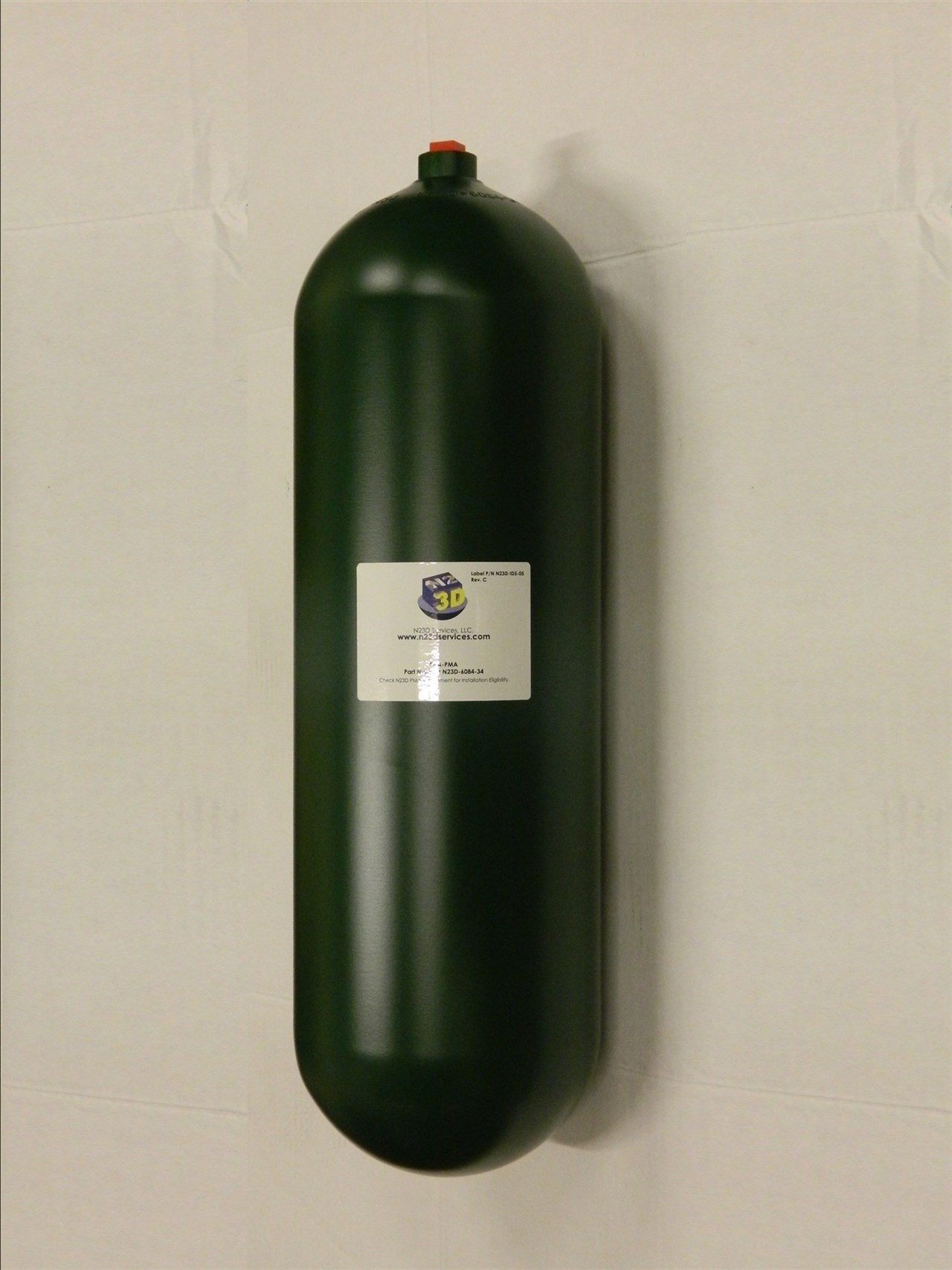

The N23D-6084-34 cylinder is an approved PMA replacement for Avox/Zodiac cylinder P/N 6084-34, 10003367, 6350A34XA, and 6350A34-X-A, B/E Aerospace cylinder P/N 176000-115, and Adams Rite cylinder P/N 904-002-475-03 and P/N 904-002-475-53. The N23D-6084 Series PMA cylinder is manufactured to DOT 3HT specification, the same as cylinder P/N 6084-34, 10003367, 6350A34XA, and 6350A34-X-A from Avox/Zodiac, cylinder P/N 176000-115 from B/E Aerospace, and cylinder P/N 904-002-475-03 and P/N 904-002-475-53 from Adams Rite. The cylinder is made from a steel billet, stretch formed into a cylinder with the end spun formed. The N23D-6084-34 PMA cylinder is eligible for installation into the Oxygen Systems on Airbus, Boeing, and McDonnell Douglas aircraft.



Cylinders available in 2 colors: Dark Green #24062 or Light Green # 14187 per FED-STD-595

Contact Us

Image with captcha text



   Part No.



N23D-6084-34



  Replaces Part No.



Avox/Zodiac:
6084-34
10003367
6350A34XA
6350A34-X-A



B/E:
176000-115



Adams Rite:
904-002-475-03
904-002-475-53



   Applies to



Airbus A300 Series/A300-600 Series
A310 Series
A318 Series
A319 Series
A320 Series
A321 Series
A330 Series
A340 Series



Boeing
707-100 Series/707-100B Series
707-200 Series/707-300 Series
707-300B Series/707-300C Series
707-400 Series
727 Series/727C Series
727-100 Series/727-100C Series
727-200 Series/727-200F Series
737-100 Series/737-200 Series
737-200C Series/737-300 Series
737-400 Series/737-500 Series
737-700 Series/737-800 Series
737-600 Series/737-700C Series
737-900 Series/737-900ER Series
747-100 Series/747-100B Series
747-100B SUD Series
747-200B Series/747-200C Series
747-200F Series/747-300 Series
747SP Series/747SR Series
757-200 Series/757-200PF Series
757-200CB Series/757-300 Series
767-200 Series/767-300 Series
767-300F Series/767-400ER Series
777-200 Series/777-200LR Series
777-300 Series/777-300ER Series



Beechcraft Baron Travel Air 56TC A56TC



Cessna Model 310
Model 320
Model 340
Model 421
Model 425 Conquest I/ Corsair
Model 441 Conquest / Conquest II



Gulfstream G-IV



Dassault Aviation
Mystere-Falcon 50



Embraer
EMB-120



McDonnell Douglas
DC-9 Series
DC-9-81 (MD-81)/DC-9-82 (MD-82)
DC-9-83 (MD-83)/DC-9-87 (MD-87)
MD-88/MD-90-30
DC-10 Series
MD-11/MD-11F
MD-10-10F/MD10-30F
