Part #: N23D-64236-1

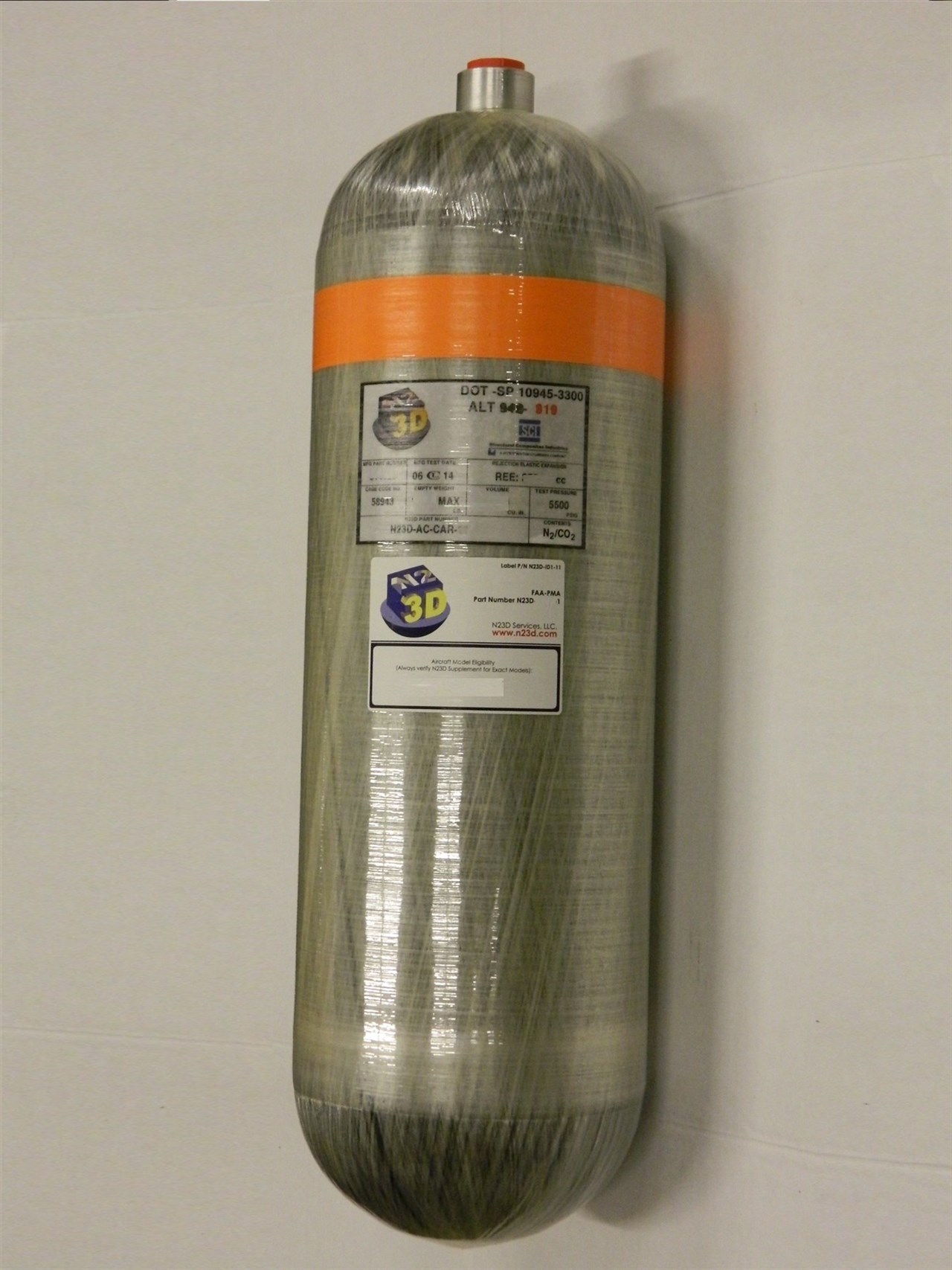

The N23D-64236-1 cylinder is approved for replacement of cylinder P/N 64236-1 and D17851-34 from Zodiac/Air Cruisers and B64236-1 from AmSafe. The N23D cylinder is manufactured to the same DOT specification as the Zodiac/Air Cruisers 64236-1 and D17851-34 cylinders and AmSafe B64236-1 cylinder. The construction is of an aluminum liner, wrapped with impregnated Carbon fibers, and covered with a fiberglass protective layer. The N23D-64236-1 cylinder is eligible for installation into the Zodiac/Air Cruisers Evacuation Slide on the Airbus aircraft.

Part No.

N23D-64236-1

Replaces Part No.

Zodiac/Air Cruisers:
64236-1
D17851-34


AmSafe:
B64236-1



Applies to

Airbus A318, A319, A320, A321 Series​

Supplement No. 1
Check Supplement for detailed Eligibility list.
All images used are for illustrative purposes only. The specifications of cylinders is correct at the date published but may be subject to change as necessary and without notice. Images are indicative of the quality and style of the specification and may not represent wholly the actual product.
