Part #: N23D-630124-09

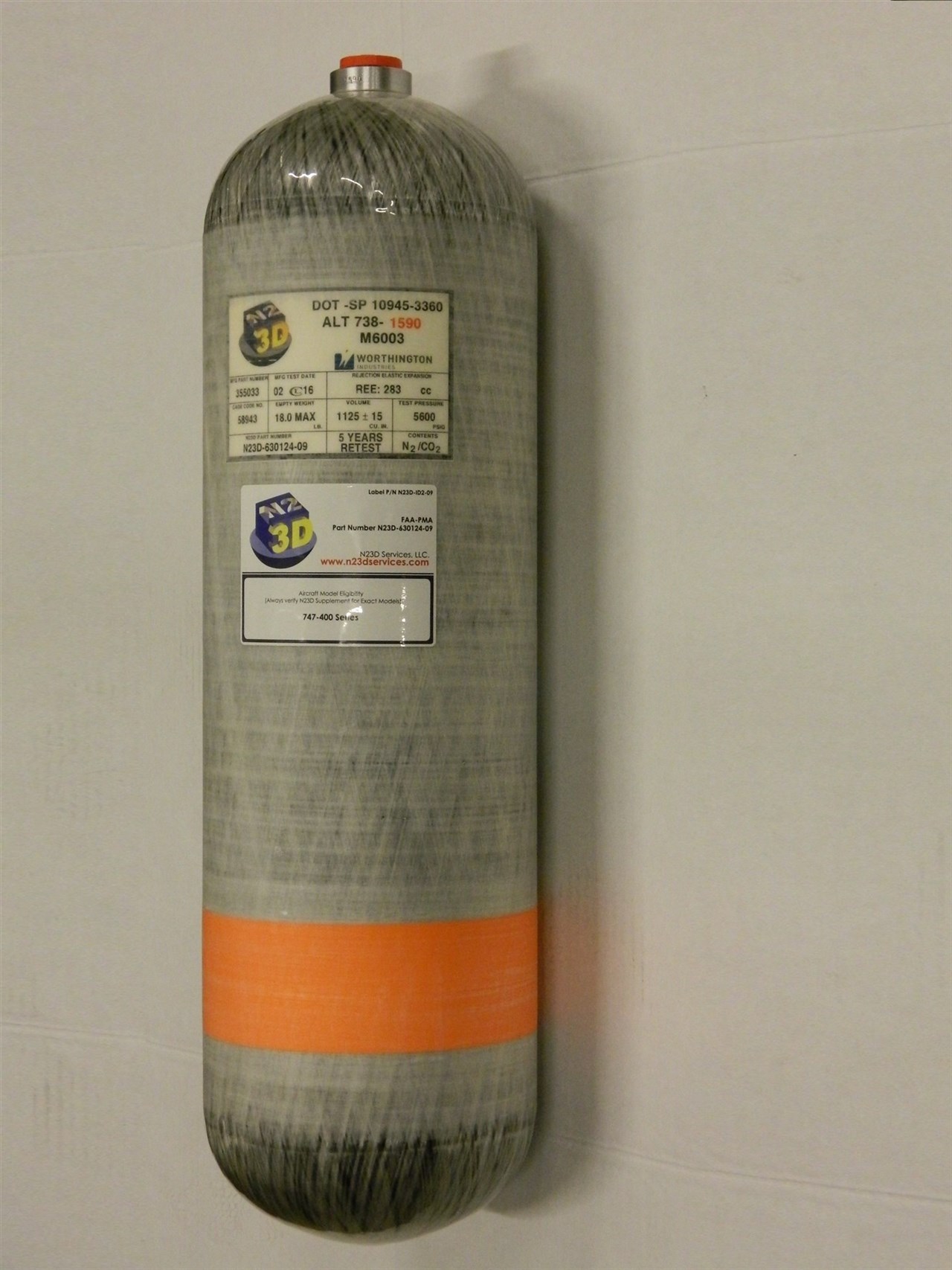

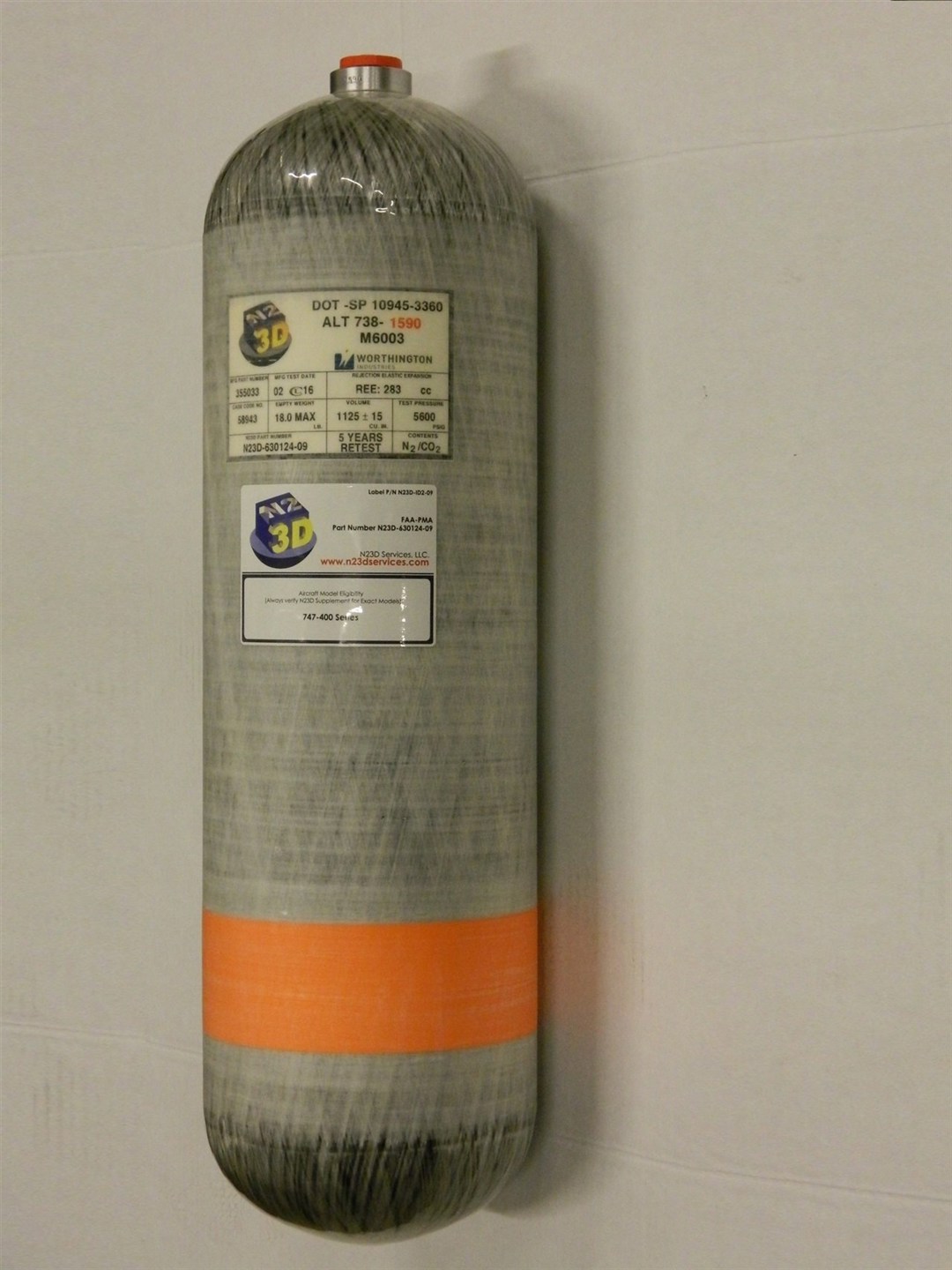

The N23D-630124-09 cylinder is approved for replacement of cylinder P/N 630124-09 and 4A3530 from Goodrich. The N23D cylinder is manufactured to the same DOT specification as the Goodrich 630124-09 and 4A3530 cylinders. The construction is of an aluminum liner, wrapped with impregnated Carbon fibers, and covered with a fiberglass protective layer. The N23D-630124-09 cylinder is eligible for installation into the Goodrich Evacuation Slide/Raft on Boeing 747-400 Series aircraft.

Part No.

N23D-630124-09

Replaces Part No.

Goodrich:
630124-09
4A3530

Applies to

Boeing 747-400, -400D, -400F Series

Supplement No. 3
Check Supplement for detailed Eligibility list.
All images used are for illustrative purposes only. The specifications of cylinders is correct at the date published but may be subject to change as necessary and without notice. Images are indicative of the quality and style of the specification and may not represent wholly the actual product.
