Part #: N23D-6084-27

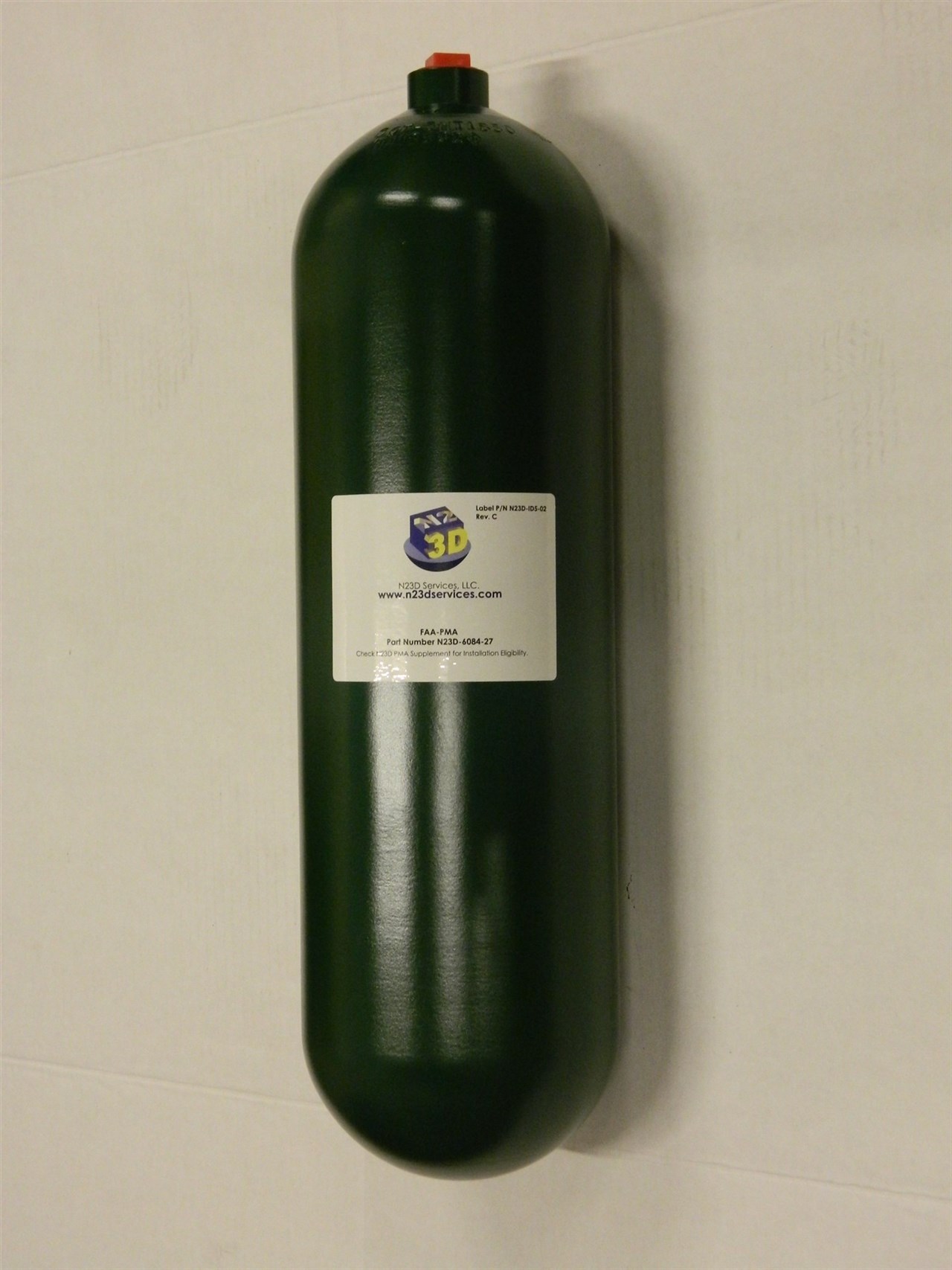

The N23D-6084-27 cylinder is a PMA approved for replacement cylinder for Avox/Zodiac cylinder P/N 6084-27, 10005003, 6350A25XA, and 6350A25-X-A, B/E Aerospace cylinder P/N 176000-49, and Adams Rite Cylinder P/N 904-002-475-13 and 904-002-475-63. The N23D-6084 Series PMA cylinder is manufactured to DOT 3HT specification, the same as the 6084-27, 10005003, 6350A25XA, and 6350A25-X-A cylinders from Avox/Zodiac, 176000-49 cylinder from B/E Aerospace, and cylinder P/N 904-002-475-13 and 904-002-475-63 from Adams Rite. The cylinder is made from a steel billet, stretch formed into a cylinder with the end spun formed. The N23D-6084-27 PMA cylinder is eligible for installation into the Oxygen Systems on Boeing, Beechcraft, Cessna, Gulfstream, and McDonnell Douglas aircraft.

Part No.

N23D-6084-27

Replaces Part No.

Avox/Zodiac:
6084-271
100050031
6350A25XA1
6350A25-X-A1
6350A25XAK
42051-00

Adams Rite
904-002-475-132
904-002-475-632

B/E Aerospace
176000-49



Applies to

Boeing 737-100 Series/737-200 Series
737-200C Series/737-300 Series
737-400 Series/737-500 Series
737-700 Series/737-800 Series
737-600 Series/737-700C Series
737-900 Series/737-900ER Series

Beechcraft Airliner Model C993
Baron Travel Air B55 E55 58 G583
King Air Series3

Cessna Model 3104
Model 500/5014
Model 5254

Gulfstream G-1159A (GIII)5

McDonnell Douglas
DC-9 Series
DC-9-81 (MD-81)/DC-9-82 (MD-82)
DC-9-83 (MD-83)/DC-9-87 (MD-87)
MD-88
MD-90-30

1 Supplement No. 6
2 Supplement No. 8
3 Supplement No. 10
4 Supplement No. 11
5 Supplement No. 14
Check Supplement for detailed Eligibility list.
All images used are for illustrative purposes only. The specifications of cylinders is correct at the date published but may be subject to change as necessary and without notice. Images are indicative of the quality and style of the specification and may not represent wholly the actual product.
