Part #: N23D-66042-1

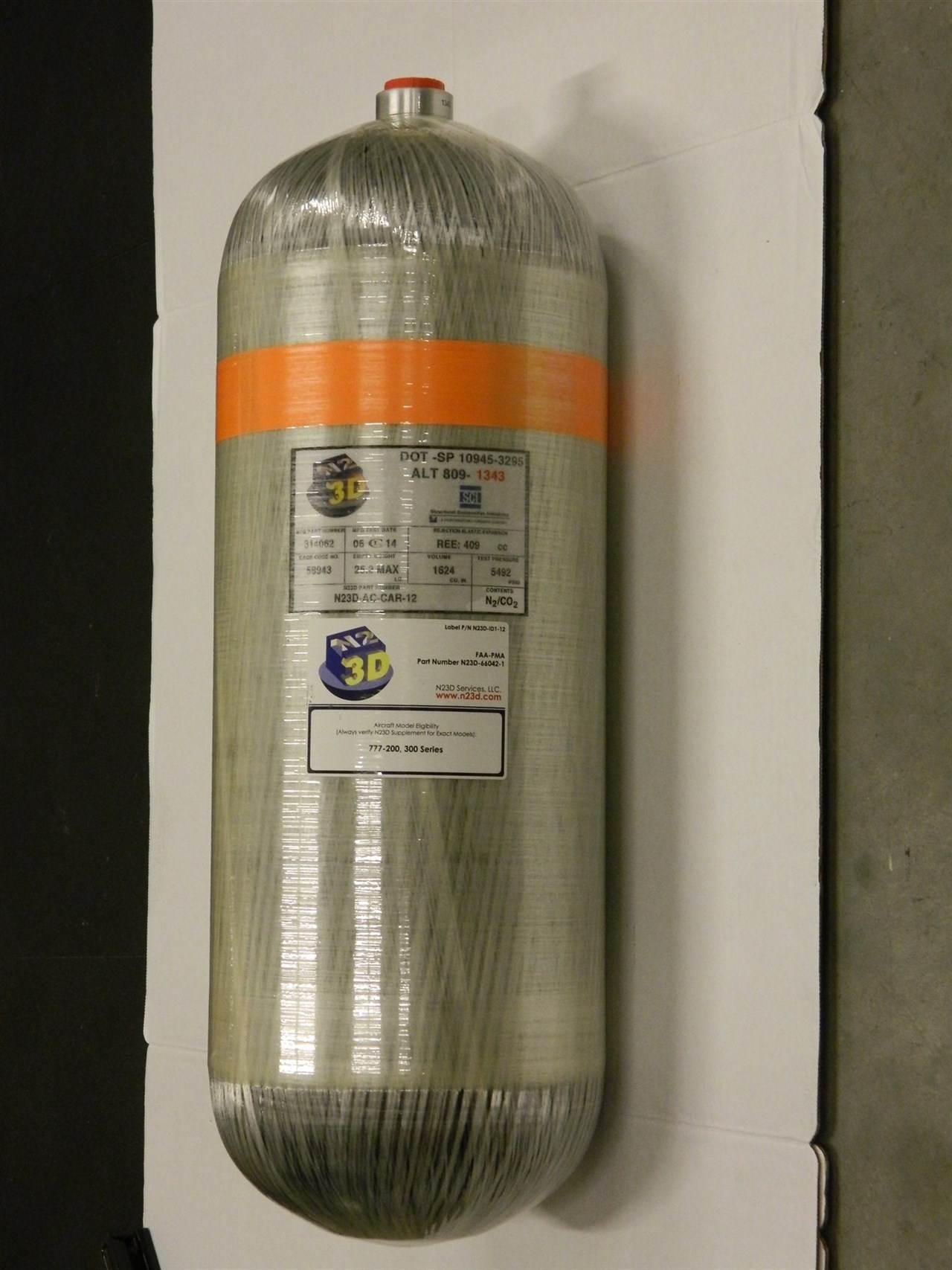

The N23D-66042-1 cylinder is approved for replacement of cylinder P/N 66042-1, 64234-3, 63229-3, and 63229-1 from Zodiac/Air Cruisers and cylinder P/N B66042-1 from AmSafe. The N23D cylinder is manufactured to the same DOT specification as the Zodiac/Air Cruisers 66042-1, 64234-3, 63229-3, and 63229-1 cylinders and AmSafe B66042-1 cylinder. The construction is of an aluminum liner, wrapped with impregnated Carbon fibers, and covered with a fiberglass protective layer. The N23D-66042-1 cylinder is eligible for installation into the Zodiac/Air Cruisers Evacuation Slide/Raft on the Boeing aircraft.

Part No.

N23D-66042-1

Replaces Part No.

Zodiac/Air Cruisers:
66042-1
64234-3
63229-3
63229-1


AmSafe:
B66042-1

Applies to

Boeing 777-200, -300 Series

All images used are for illustrative purposes only. The specifications of cylinders is correct at the date published but may be subject to change as necessary and without notice. Images are indicative of the quality and style of the specification and may not represent wholly the actual product.
