Part #: N23D-21507-06

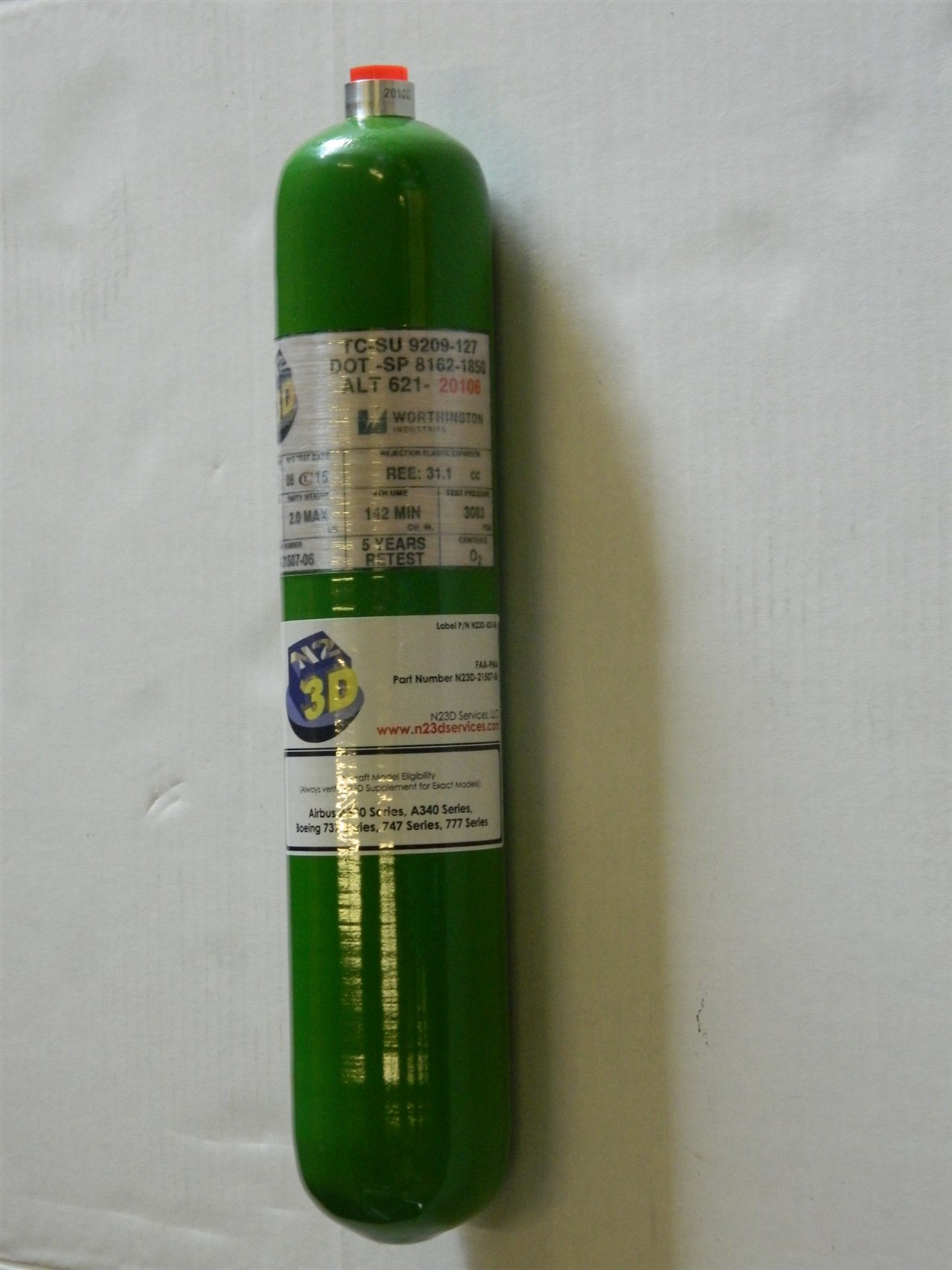

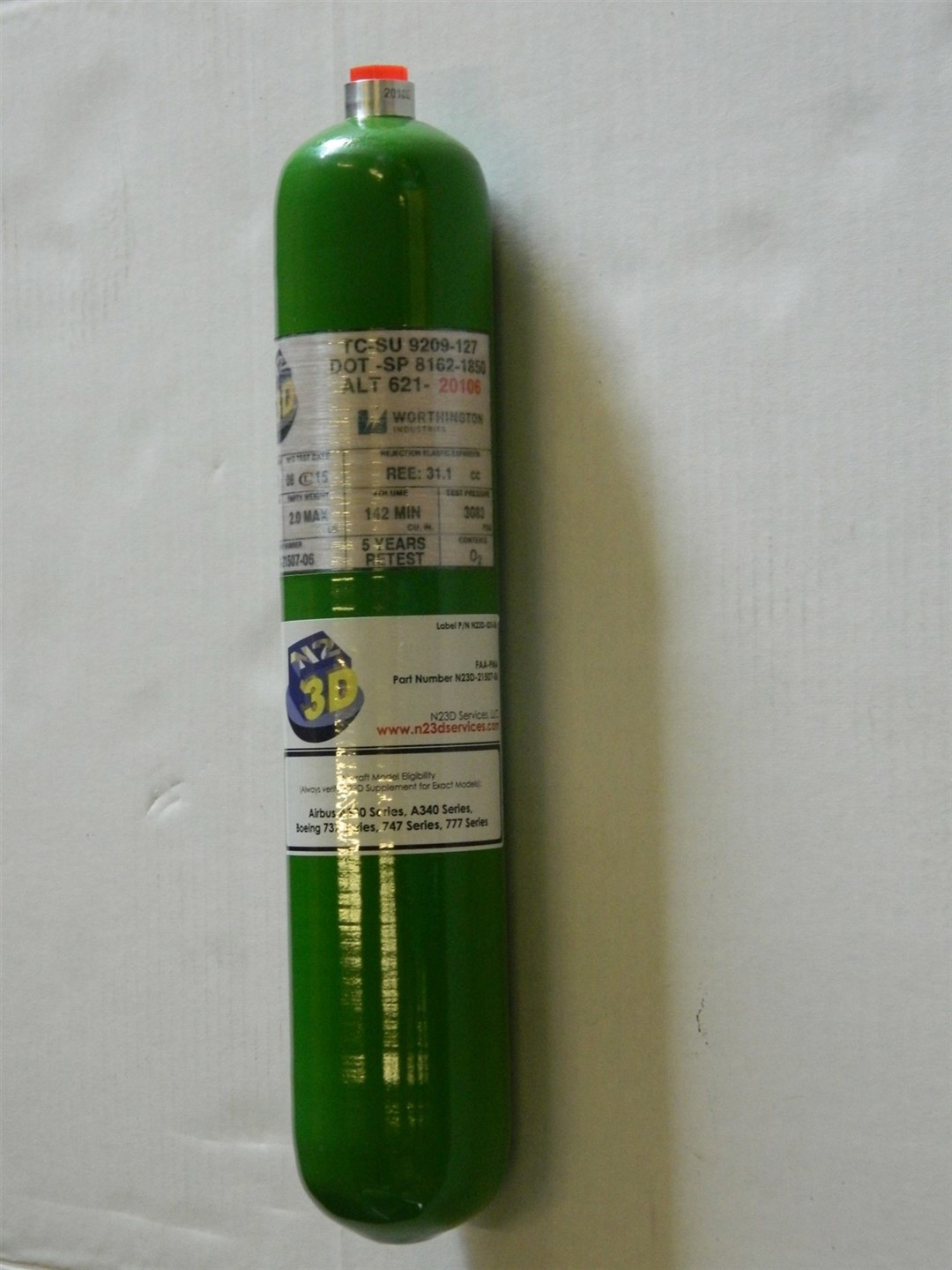

The N23D-21507-06 cylinder is approved for replacement of cylinder P/N 21507-06 cylinder from Avox/Zodiac, and of cylinder P/N 176700-11 and 1271429 from B/E Aerospace. The N23D cylinder is manufactured to same DOT specification as the 21507-06 cylinder from Avox/Zodiac, and the 176700-11 and 1271429 cylinders from B/E Aerospace. The cylinder is constructed of a seamless aluminum liner with a Kevlar epoxy resin composite overwrap and polyurethane top coating. The N23D-21507-06 cylinder is eligible for installation into the Oxygen Systems on Airbus and Boeing aircraft.

Part No.

N23D-21507-06

Replaces Part No.

Avox/Zodiac:
21507-06
B/E:
176700-11
1271429

Applies to

Airbus A330-200 Series1
A330-300 Series1
A340-200 Series1
A340-300 Series1
A340-5411
A340-6421

Boeing 737-100 Series/737-200 Series1
737-200C Series/737-300 Series1
737-400 Series/737-500 Series1
737-700 Series/737-800 Series1
737-600 Series/737-700C Series1
737-900 Series/737-900ER Series1
747-100 Series/747-200B Series1
747-200F Series/747-200C Series1
747SR Series/747SP Series1
747-100B Series/747-300 Series1
747-100B SUD Series/747-400 Series1
747-400D Series/747-400F Series1
777-200 Series/777-200LR Series1
777-300 Series/777-300ER Series1

1 Supplement No. 2
2 Supplement No. 5
Check Supplement for detailed Eligibility list.
All images used are for illustrative purposes only. The specifications of cylinders is correct at the date published but may be subject to change as necessary and without notice. Images are indicative of the quality and style of the specification and may not represent wholly the actual product.
